Turning capabilities
- Manual & CNC Lathes
- Custom Parts Manufacturing
- Reverse Engineering
- 24/7 Emergency Service
- Max Horizontal Turning Capability: 60″ swing over the bed; 27′ L
- Max Vertical Turning Capability: 82″ swing; 70″ height under the tool
Turning
Frontline's full machine shop combines manual and CNC lathes with experienced machinists and programmers for turning support.
Service overview
In-house turning for repair and custom parts
In-house machine-shop capability and experienced machinists and programmers support turning for repair and custom parts.
CNC turning lathes
Doosan Puma GT 3100
- Type:
- CNC lathe
- Main spindle chuck:
- 15″
- Max. turning length:
- 29.7″
- Max. turn diameter:
- 18.9″

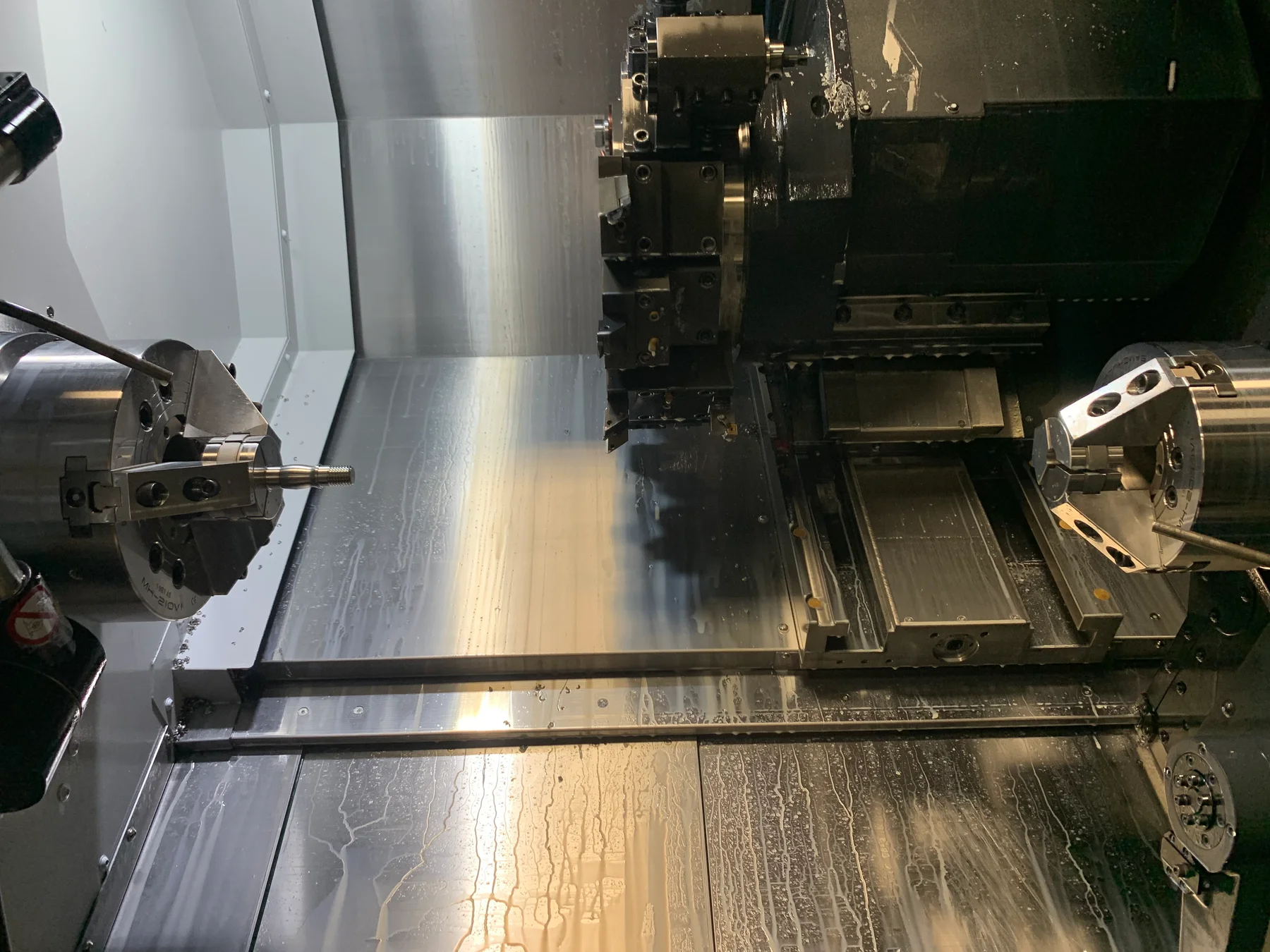

Doosan Puma 2600 SY II
- Type:
- CNC lathe
- Main spindle chuck:
- 10″
- Max. turning length:
- 29.9″
- Max. turn diameter:
- 14.8″
- Spindle:
- Sub Spindle
- Axes:
- X, Y, Z, Full C Axis
- Machining:
- Live Tool Milling / Turning
Doosan Puma 300 LM
- Type:
- CNC lathe
- Main spindle chuck:
- 12″
- Bar capacity:
- 4″
- Max. turning length:
- 52.7″
- Max. turn diameter:
- 14″
- Swing:
- 23.2″
- No. Axis:
- 4″
- Tailstock:
- Yes

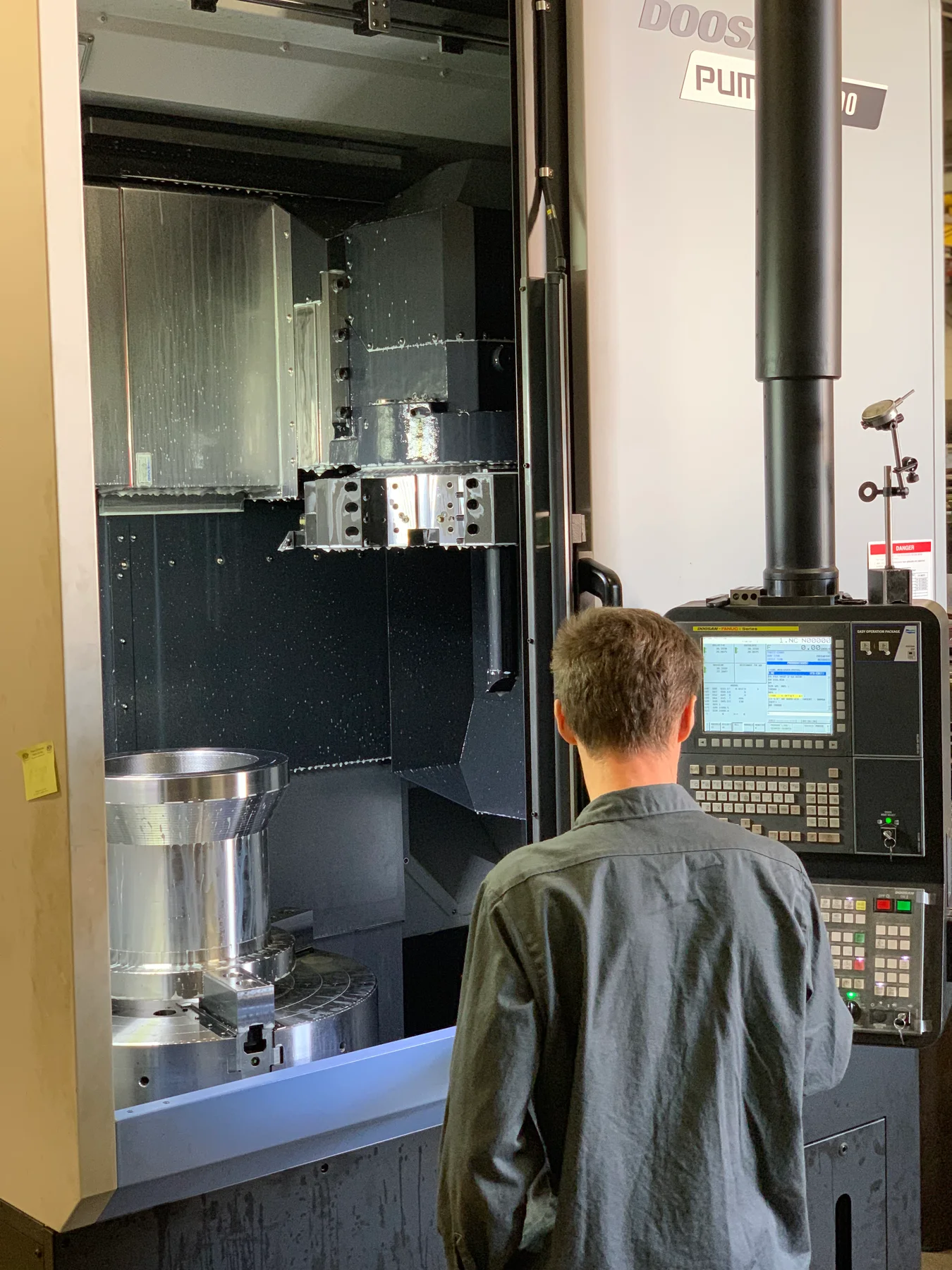

Doosan Puma V8300
- Type:
- CNC vertical lathe
- Main spindle chuck:
- 21″
- Max. turning length:
- 30.7″
- Max. turn diameter:
- 32.68″

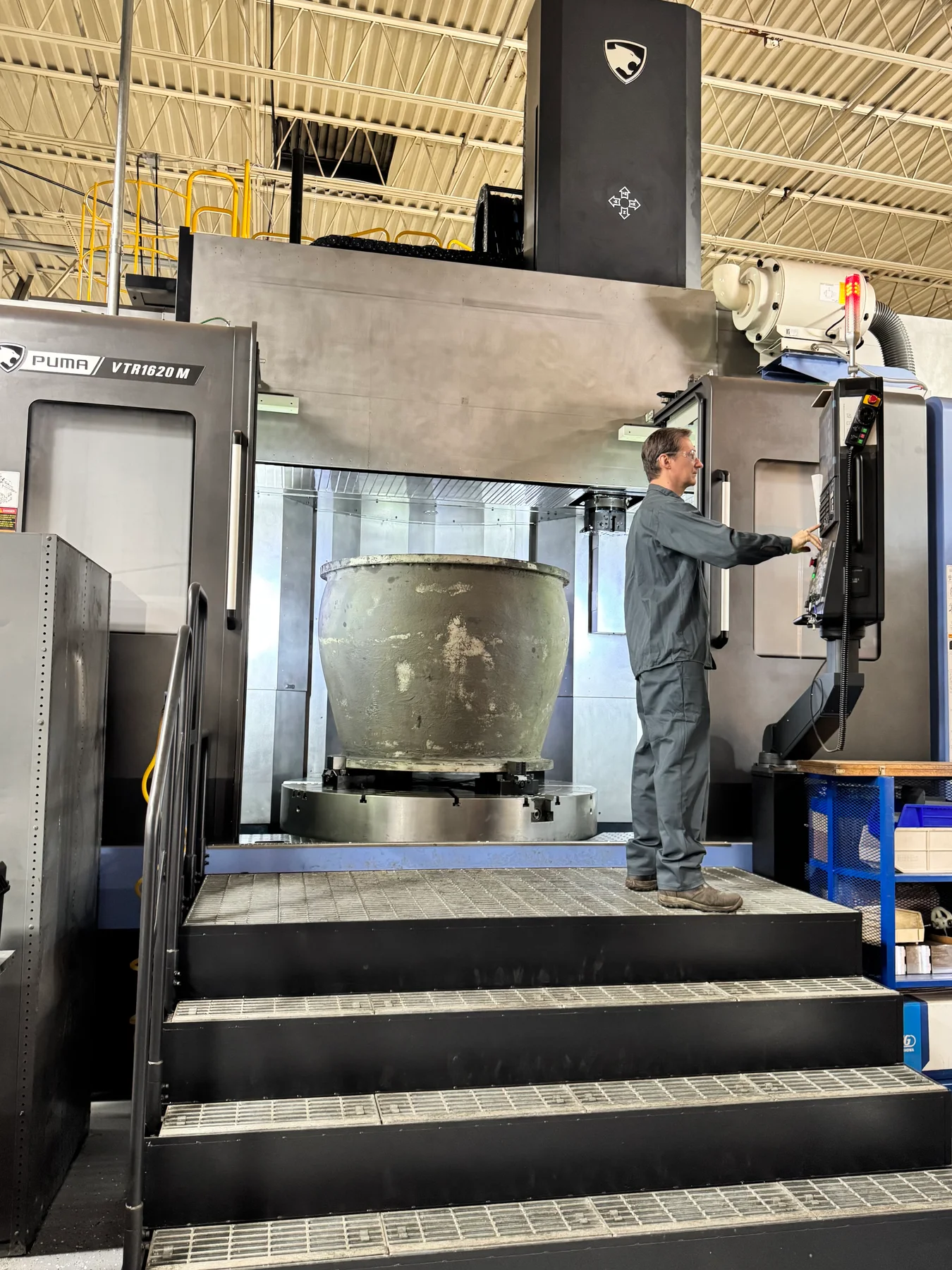

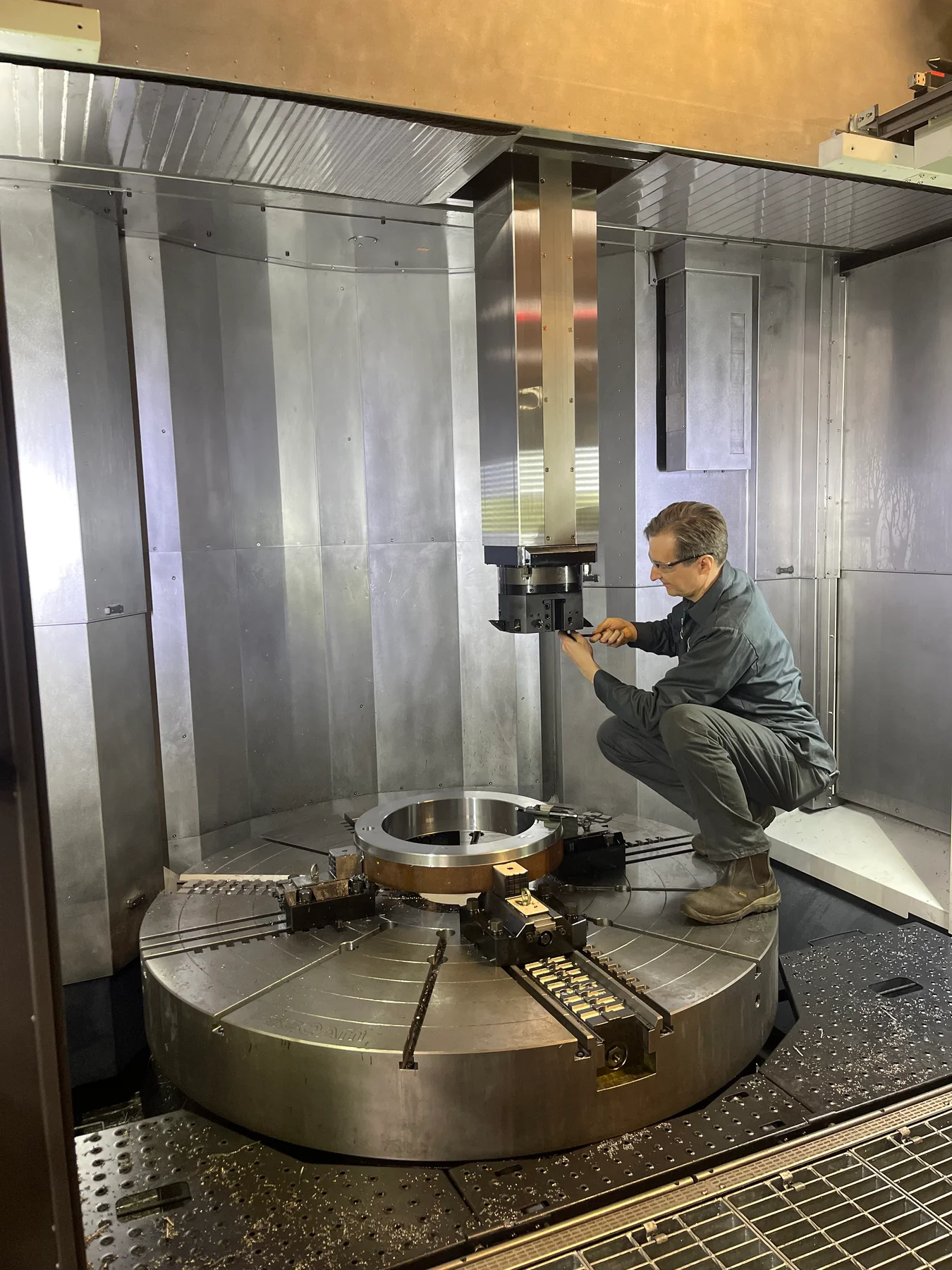

Doosan VTR 1620M
- Type:
- CNC vertical lathe
- Table diameter:
- 70″
- Swing:
- 82.6″
- Work Ht-U/R:
- 70.87″
- Power:
- 90 hp
- Speed:
- 300 rpm
Conquest 42
- Type:
- CNC lathe

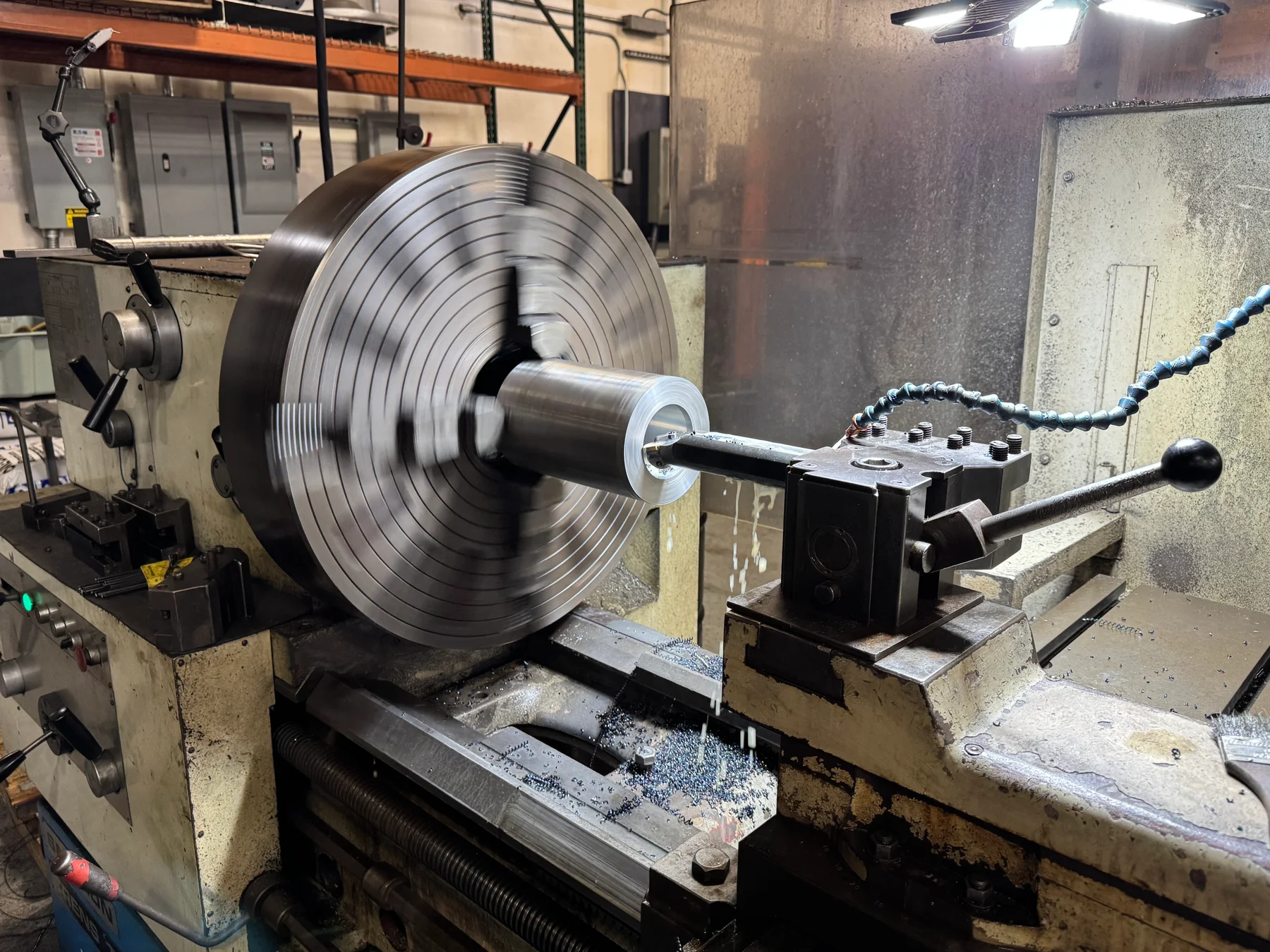

Manual turning lathes
Fortune 1660GE
- Type:
- Manual lathe
- Swing over bed:
- 16″
- Distance between centers:
- 60″
- Swing over gap:
- 23.5″
- Spindle bore:
- 2-1/4″
Trencin SN-710
- Type:
- Manual lathe
- Swing over bed:
- 28.3″
- Distance between centers:
- 157.5″
- Swing over gap:
- 37.8″
- Swing over cross slide:
- 17″
- Useful length in gap (front of nose spindle):
- 11.8″
- Height of centres:
- 14″

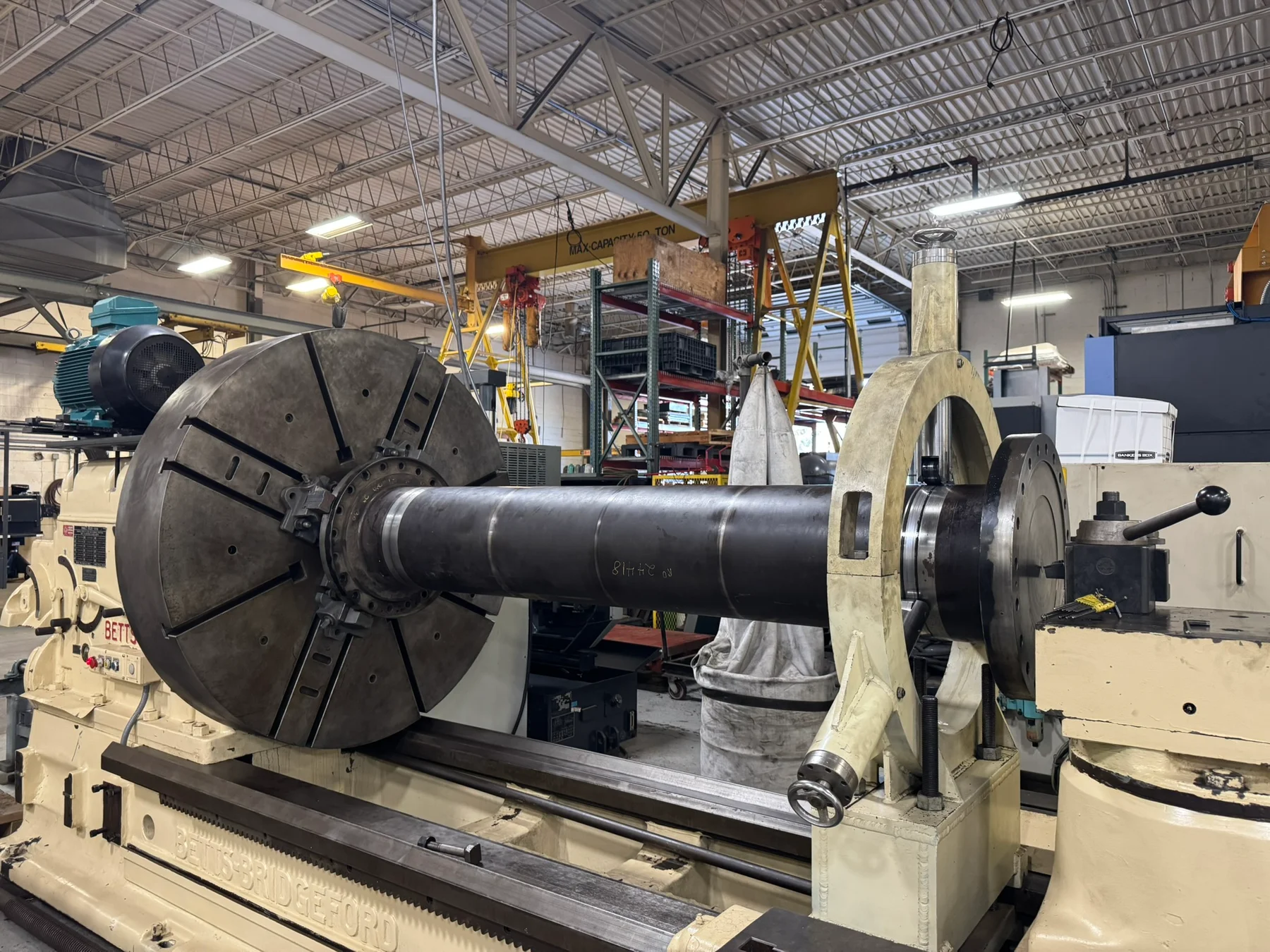

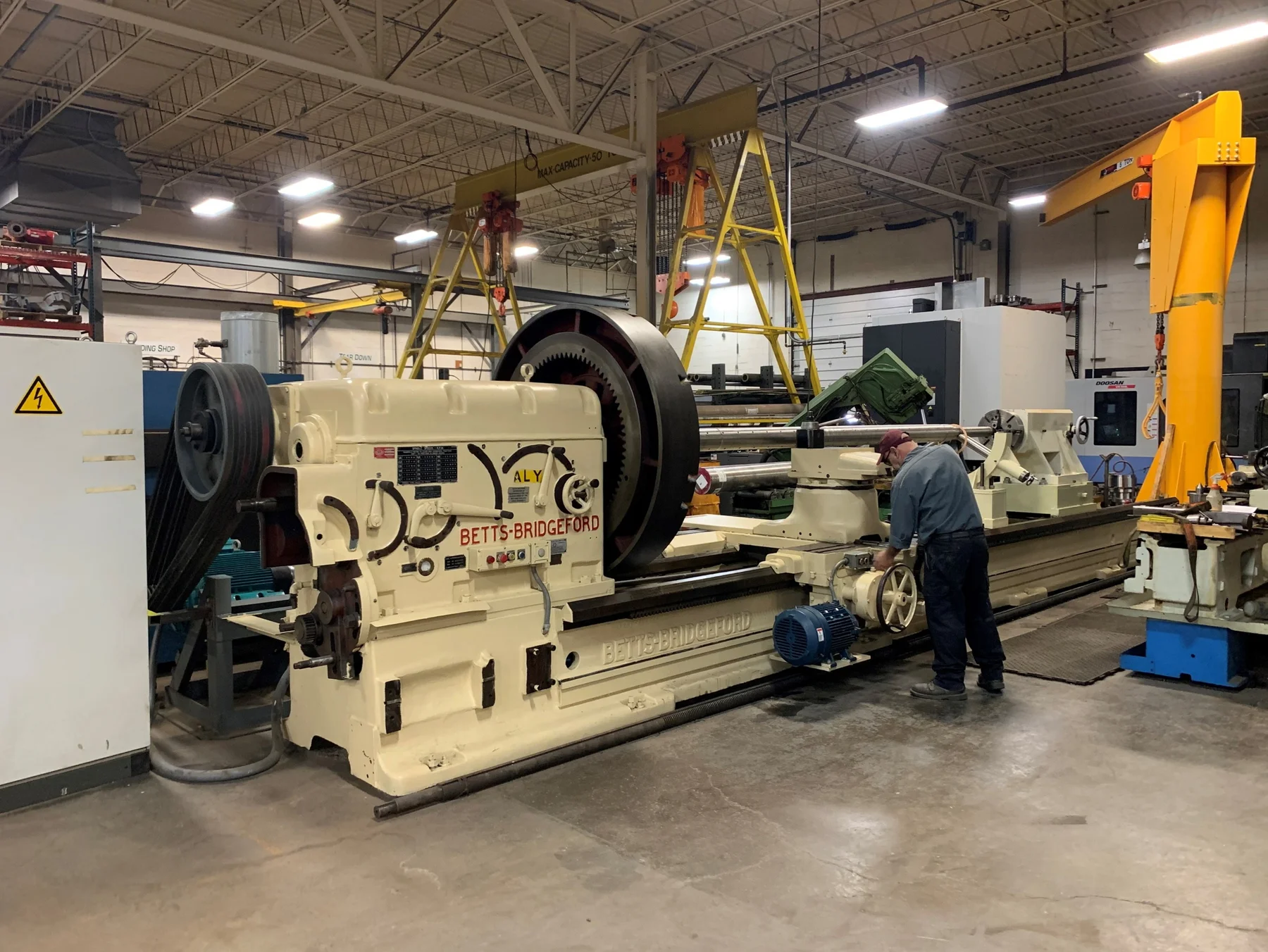

Betts-Bridgeford E-6388
- Type:
- Manual lathe
- Swing over the bed:
- 60″
- Length:
- 20′
Fortune
- Type:
- Manual lathe
Fortune
- Type:
- Manual lathe
Fortune 1660
- Type:
- Manual lathe
Royal S2180G
- Type:
- Manual lathe
24 / 7 support
Need turning service?
Contact our team for turning support, emergency service or a quote.
