FLEXIBLE SHAFT COUPLINGS

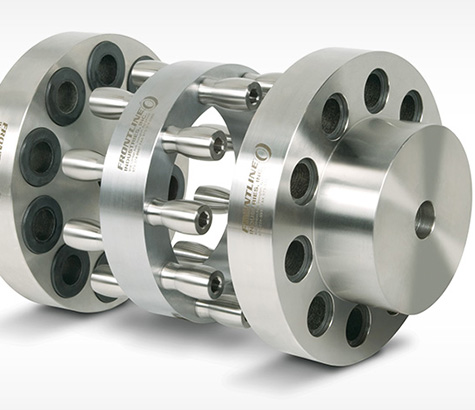

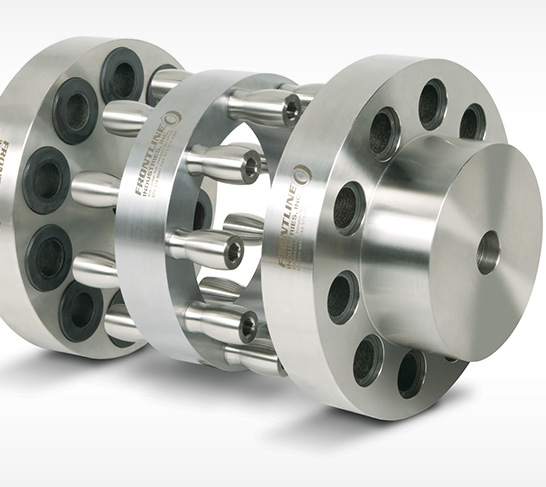

Frontline Couplings transmit torque through precision machined barrel shaped pins, which ride within self-lubricated fiber-reinforced polymer bushings. This patented “free-floating” double engagement design gives the Frontline Coupling several advantages.
THE ADVANTAGES OF FRONTLINE COUPLINGS
High Misalignment Tolerance
The “free floating” double engagement design allows the Frontline Coupling to significantly reduce the adverse effect of lateral forces due to unavoidable misalignment. This feature greatly extends the bearing life of the driver and the driven equipment.
Electrically Isolated
Because of the polymer bushings, the two hubs are electrically isolated from each other and therefore prevent stray currents from traveling across and damaging the bearings on the driven equipment.
Dynamically Balanced
Finished bore couplings are furnished balanced to AGMA Class 10.
Easy to Install & Align
No special tools are required for installation or removal. In the event that a laser or dial indicator is not readily available, a good alignment can still be achieved with the use of a straight edge placed across the outside of the precision machined hubs.
Environmentally Tough
The hubs, pins and power ring are made out of 303 and 316 S.S. The bushings are a fiber-reinforced polymer compound.
Vibration Dampening
The polymer bushings provide shock and vibration dampening leading to longer equipment life.
Maintenance Free
No Lubrication required since the bushings are made out of a low coefficient of friction, high strength, self-lubricated polymer compound. In the event that the pins and bushings need to be replaced, this can be easily done in the field without disturbing the equipment.
Low Inventory Cost
Only one-size bushing and pin are needed for each Coupling Series regardless of the coupling size. Also, the coupling hubs and power ring never see any wear and therefore never need to be replaced.
Easy to Inspect
Coupling condition can be inspected while it is running through the use of a strobe light.
COUPLING APPLICATIONS
Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna mollit anim id est laborum. Sed ut perspiciatis unde omnis ist. .natus error sit voluptatem accusantium doloremque laudantium, totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. Nemo enim ipsam voluptatem quia voluptas sit.
- All types of Fans
- All types of Jack Shafts
- Centrifugal Blowers
- Centrifugal Pumps
- Compressors
- Mixers
- Pulp Grinders
- Winders
- Generators
- Extruders

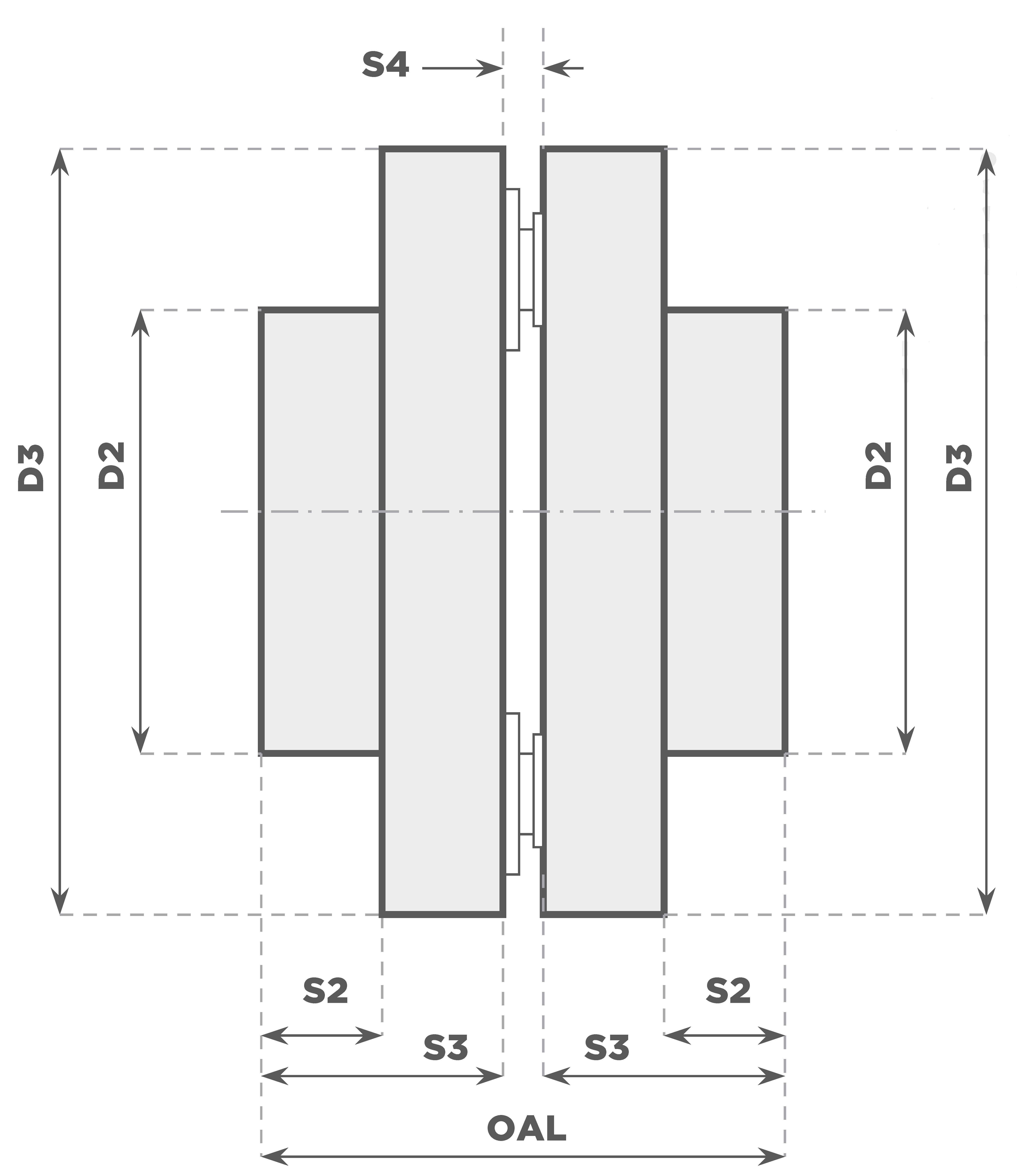

COUPLING DIMENSIONS
Component OPTIONS
- Pins:
Standard (ST), Limited End Float (LEF), Wire Secured (WS) - Bushings:
Standard (ST), Rubber Coated (RC)
MATERIALS
- Hubs & Drive Ring:
303 Stainless Steel - Pins:
316 Stainless Steel (standard) - Bushings:
Fiber Reinforced Polymer Compound (standard) or Rubber Coated
